How Does Multi-Stage Heating Work?
If you're shopping for a new furnace, you'll see three types: single-stage, two-stage and modulating. The difference is how much heat the furnace makes at a time. That changes how even, quiet and comfortable your home feels. Here's how each one works and which makes sense in Sacramento.
Single-Stage Furnaces: On or Off
A single-stage furnace has one setting: full power. When the thermostat calls for heat, the gas valve opens all the way and the blower runs at full speed until the house reaches the set temperature, then it shuts off. It's simple and costs the least upfront. The trade-off is temperature swings, louder starts and stops, and rooms near the furnace getting warmer than rooms far away.
Two-Stage Furnaces: Low Most of the Time, High When Needed
A two-stage furnace has a low setting (usually about 60–70% of full output) and a high setting. On most days it runs on low for longer, gentler cycles. It switches to high only when the house needs heat fast, like on a 30°F morning.
Longer, lower runs mean:
- Steadier temperatures with fewer hot and cold spots
- Quieter operation
- Better air mixing and filtering, because air moves through the filter more often
- Less wear from constant starting and stopping
Modulating Furnaces: Fine-Tuned Heat
A modulating furnace adjusts its output in small steps, often from about 40% up to 100%. It matches heat output to what the house is losing at that moment, so it runs almost continuously at a low level. It gives the most even comfort, but it costs the most and its controls are more complex to repair.
Single-Stage vs Two-Stage vs Modulating at a Glance
| Single-stage | Two-stage | Modulating | |
|---|---|---|---|
| Heat settings | 1 (100%) | 2 (low + high) | Many (about 40–100%) |
| Comfort | Good | Better | Best |
| Noise | Loudest | Quieter | Quietest |
| Upfront cost | Lowest | Middle | Highest |
| Thermostat | Standard | Two-stage compatible | Usually brand's communicating thermostat |
Does Staging Make a Furnace More Efficient?
Not by itself. A furnace's fuel efficiency is its AFUE rating, such as 80% or 96%. A single-stage 96% furnace uses less gas than a two-stage 80% one. Staging mainly improves comfort, with a modest efficiency gain from fewer start-ups and less blower power on low. Compare both numbers when you shop. See how to choose the right furnace.
Why the Blower Matters Too
The blower pushes heated air through your ducts. A variable-speed (ECM) blower ramps up and down slowly instead of switching on at full blast. It pairs naturally with a two-stage or modulating furnace, uses less electricity, and helps your AC pull more humidity out in summer. It's also what makes zoned systems work well, sending the right amount of air to each zone.
What Makes Sense for a Sacramento Home?
Our winters are mild. Most days the furnace only needs part of its full output, and that's exactly when a two-stage furnace runs on low. For most Sacramento homes, a two-stage furnace with a variable-speed blower is the best balance of comfort and cost. A modulating furnace makes sense in larger two-story homes with big temperature differences between floors. A single-stage furnace is fine for a small, well-insulated home or a tight budget.
If you're replacing your AC at the same time, compare a variable-speed heat pump too. It works on the same low-and-slow principle for both heating and cooling. See furnace vs. heat pump.
Get the Most From a Multi-Stage System

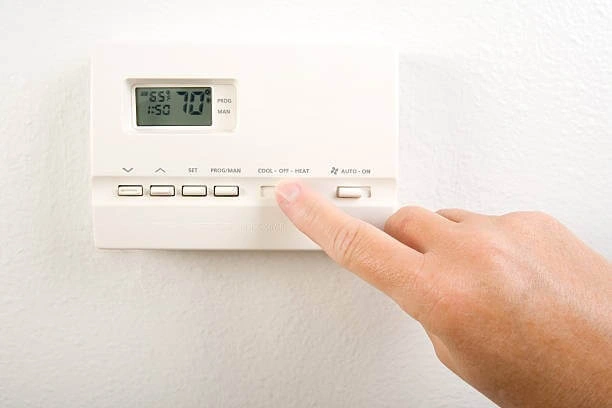

- Use a compatible thermostat. It needs to control both stages. See choosing the right thermostat.
- Avoid big setbacks. Dropping the temperature 10 degrees overnight forces the furnace onto high in the morning. Smaller changes let it stay on low.
- Keep up maintenance. A yearly furnace tune-up keeps the gas valve, sensors and blower calibrated.
FAQs
Is a two-stage furnace worth it?
For most homes, yes. It costs more than a single-stage unit, but it heats more evenly and quietly, and it lasts well when it's not starting and stopping all day.
How do I know if my furnace is two-stage?
Check the model number on the label inside the furnace door, or look at your thermostat wiring. A two-stage setup usually has a W2 terminal wired.
Can a two-stage furnace work with a regular thermostat?
Some can, using a built-in timer to switch to high stage. But you'll get better comfort from a thermostat that controls both stages directly.
